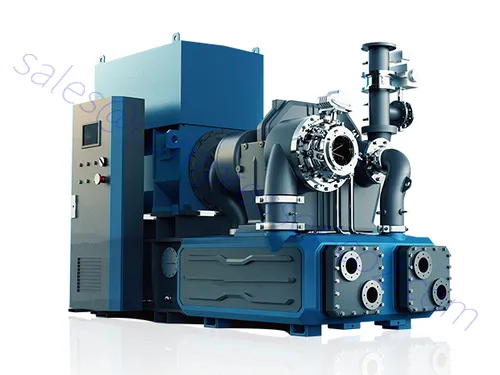

Centrifugal Compressor

Working Pressure :

0.6-25[ bar ]
8.7-362.5[ psig ]

Free Air Delivery :

882.75-105930[ cfm ]
25-3000[ m3/min ]

Working Power :

132-14500[ kw ]
175-20000[ hp ]

Certrifugal Compressor

Centrifugal Air Compressor Features and Advantages:

1. Analysis of the Rotor in dynamic

The critical speed assessment of the system Rotor provides the foundation for ensuring the safety of running the compressor.

2. Rotor Modal Analysis

Examine the various vibration patterns of an impeller when it is in an extremely fast-moving state. Set the appropriate parameters for design to lessen resonance. This will guarantee stability in operation and the performance of the compressor.

3. The stress analysis and strain of the impeller

Utilize the expert design tool and analysis of impeller strength, and the selection of different types of materials and structures, the impeller will be properly loaded to guarantee longevity and durability of the impeller.

4. The Aerodynamic Design

Through CFD calculation and evaluation of the basic model the shape and location of both the diffuser and blade are improved and the aerodynamic layout continues to be upgraded to give more efficiency and more capacity to turn down.

Advanced Control System

A standard touch-screen of 12 inches. can see all the aspects of the compressor. simple to operate; Standard Siemens PLC Dual mode automatic and continuous voltage control mode may be switched locally as well as remotely, ensuring the safety and stability of operation.
Automated reminders when any issue or maintenance required
The historical data can be viewed both locally and remotely.

Centrifugal Compressor Technical Parameters:

DAC50-DAC450

Model Maximum Working Pressure (barg) Capacity FAD*
(m³/min)
Installed Motor
Power
Dimensions(mm) Weight
kW Hp L W H Kg
DAC50 0.6-8 25-48 132-263 175-350 2650 1650 1850 3860
DAC80 0.6-10 40-85 225-450 300-600 3350 1860 2150 6500
DAC120 0.6-13 75-123 400-630 535-850 3850 2100 2250 8250
DAC200 0.6-13 115-208 618-1120 830-1120 4250 2150 2350 11500
DAC250 0.6-20 175-260 925-1375 1250-1850 4500 2250 2380 16000
DAC300 0.6-25 228-310 1225-1600 1650-2200 4650 2250 2450 17500
DAC350 0.6-25 283-360 1500-1850 2000-2500 4850 2250 2500 18500
DAC450 0.6-25 350-460 1800-2350 2400-3150 5250 2300 2950 21500

DAC550-DAC3000

Model Maximum Working Pressure (barg) Capacity FAD*
(m³/min)
Installed Motor
Power
Dimensions(mm) Weight
kW Hp L W H Kg
DAC550 0.6-25 430-586 2250-3150 3000-4200 6250 4550 3550 41500
DAC1000 0.6-25 550-1015 2850-5000 3800-5750 8350 3850 3850 45500
DAC1500 0.6-25 920-1650 4500-7850 6000-10500 12500 4550 4550 62500
DAC3000 0.6-25 1680-3000 7980-14500 10800-20000 14500 5350 5350 78500

Turbocharger Series

Model Inlet Pressure
(barg)
Capacity FAD*
(m³/min)
Outlet Pressure
(barg)
Installed Motor
Power (kW)
Dimensions(mm) Weight
L W H Kg
DAC550-HB 0.3-1.0 436-586 16-50 1214-1758 5250 3250 2850 25000
DAC1000-HB 0.3-1.0 550-1020 16-50 1925-3570 5850 3550 3150 32500
DAC1500-HB 0.3-1.0 920-1650 16-50 3220-5775 6500 4350 3550 42500
DAC3000-HB 0.3-1.0 1680-3000 16-50 5880-10500 7500 5350 4250 58500
