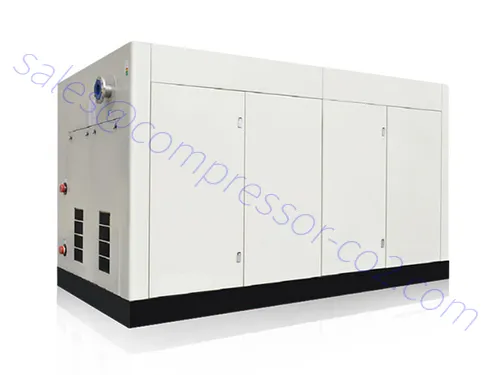

High-pressure Oil-free Screw Air Compressor

High-pressure Oil-free Screw Air Compressor

Working Pressure :

20-40[ bar ]
290-580[ psig ]

Free Air Delivery :

64-1412[ cfm ]
1.8-40[ m3/min ]

Working Power :

55-400[ kw ]
70-550[ hp ]

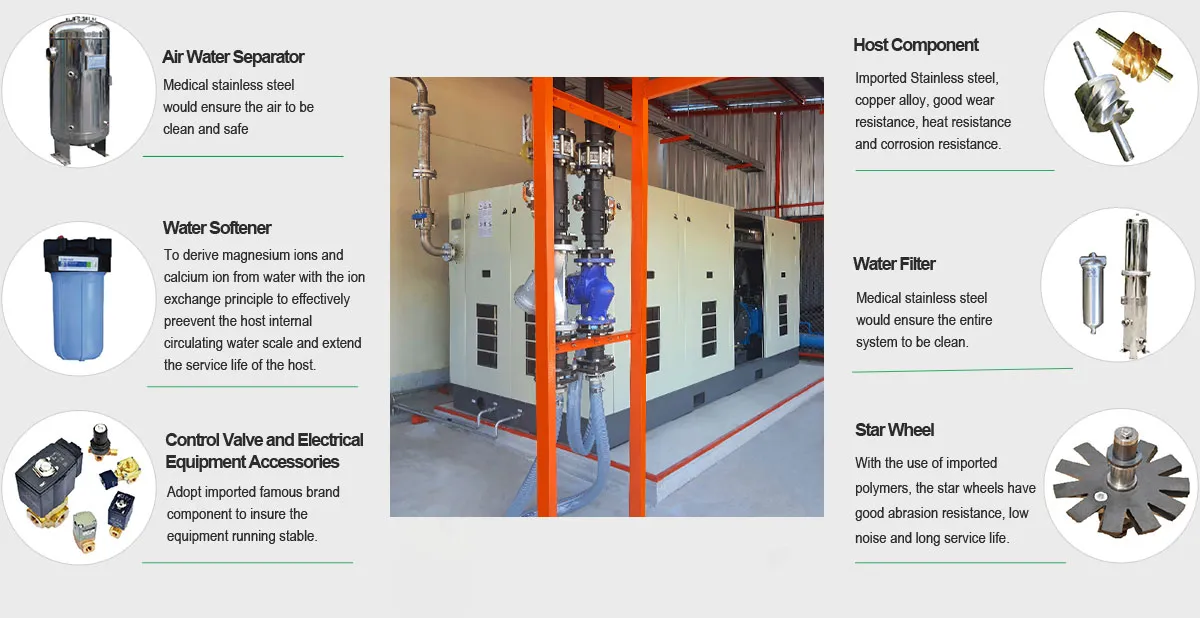

High Pressure Water Lubricated Oil Free Air Compressor Detailed Drawing

The working principle and the characteristics of a single screw compressor:

  • Simple construction Low-vibration
    A single-screw compressor is comprised of a single screw and two wheels that are located within the screw. Axial and radial loads cancel each other and result in a virtually non-load. It is the most advanced design structure for a single screw compressor.
  • High-efficiency
    The first reason is it is that the screw compressors don’t have clearance. Additionally, water used to lubricate air may help to seal the gap in the chamber of compression which allows high-efficiency operation with a lower rate. The third reason is that water cooling the compressor will keep the compressor operating at an ideal temperature for compression.
  • Save energy
    In the event that the actual usage of air is not greater than the flow rate that is recommended and the compressor is running at a lower speed, it will draw more power, however, there is no output of air while taking off. With an inverter, the compressor can adjust its speed in accordance with the pressure of air that is determined, resulting in the reduction of energy consumption.
  • Less noise
    The motor and the screws are directly connected, without rotation gears which could create noise within the motor. Additionally, the use of sound-absorbing materials is also made in the shell of the equipment to minimize noise.
  • Stable air delivery
    The valve controls the pressure sensor. The digital controller adjusts the speed of the motor’s rotation through an inverter. This is how it regulates the flow of air pressure to ensure a constant flow of air.
  • Monitorable
    Intelligent monitoring is utilized to prevent injuries. The emergency alarm is displayed on computers and messages of a short length are also reported to supervisors. These are essential to prevent production-related accidents.

High-pressure Oil-free Screw Air Compressor Technical Parameters:

Model Capacity(FAD)* Maximum working
pressure		 Installed motor power Lubricated Water Capacity Noise
level**		 Dimensions(mm) Weight Air outlet
pipe diameter		 Cooling Water Capacity
m³/min cfm bar(g) psig kw hp L/min dB(A) L*W*H(mm) kg Inch T/h
DVAWH-55(W) 1.8-6.0 64-212 20 290 37+15 50+20 86 70 2900*1400*1700 2000 1″ 12
DVAWH-60(W) 30 435 37+22 50+30 86 70 2900*1400*1700 2000 1″ 12
DVAWH-65(W) 40 580 37+30 50+40 92 70 2900*1400*1700 2100 1″ 15
DVAWH-75 3.0-10.0 106-353 20 290 55+22 75+30 110 73 3600*1750*2000 2400 1-1/4″
DVAWH-90W 30 435 55+37 75+50 110 73 3500*1500*1730 2300 1-1/4″ 17
DVAWH-110W 40 580 75+37 100+50 120 73 3500*1500*1730 2400 1-1/4″ 20
DVAWH-110W 3.5-13.0 124-459 20 290 75+30 100+40 135 75 3500*1500*1730 2500 1-1/2″ 22
DVAWH-120W 30 435 75+45 100+60 135 75 3500*1500*1730 2500 1-1/2″ 22
DVAWH-135W 40 580 90+45 120+60 148 75 3500*1500*1730 2650 1-1/2″ 24
DVAWH-130W 5.0-16.0 177-565 20 290 90+37 120+50 160 76 4000*1700*1800 3200 2″ 27
DVAWH-145W 30 435 90+55 120+75 160 76 4000*1700*1800 3200 2″ 27
DVAWH-165W 40 580 110+55 150+75 160 76 4000*1700*1800 3200 2″ 35
DVAWH-165W 6.1-20.0 215-706 20 290 110+55 150+75 172 76 4000*1700*1800 3600 2″ 35
DVAWH-185W 30 435 110+75 150+100 172 76 4000*1700*1800 3600 2″ 35
DVAWH-210W 40 580 132+75 175+100 185 76 4000*1700*1800 3800 2″ 38
DVAWH-200W 7.0-24.0 247-847 20 290 132+65 175+89 200 77 4200*2000*2100 4200 2-1/2″ 38
DVAWH-220W 30 435 132+90 175+120 200 77 4200*2000*2100 4200 2-1/2″ 38
DVAWH-250W 40 580 160+90 215+120 200 77 4200*2000*2100 4300 2-1/2″ 45
DVAWH-240W 8.5-28.0 300-989 20 290 185+55 250+75 210 78 4200*2000*2100 4600 2-1/2″ 46
DVAWH-260W 30 435 185+75 250+100 210 78 4200*2000*2100 4600 2-1/2″ 46
DVAWH-290W 40 580 200+90 270+120 225 78 4200*2000*2100 4600 2-1/2″ 55
DVAWH-300W 9.5-36.0 335-1271 20 290 185+110 250+150 220 80 4500*2250*2200 5000 3″ 50
DVAWH-315W 30 435 185+132 250+175 260 80 4500*2250*2200 5000 3″ 60
DVAWH-355W 40 580 200+160 270+215 290 80 4500*2250*2200 5000 3″ 68
DVAWH-330W 10.0-40.0 353-1412 20 290 220+110 300+150 280 80 4500*2250*2200 5000 3″ 65
DVAWH-355W 30 435 220+132 300+175 300 80 4500*2250*2200 5000 3″ 70
DVAWH-400W 40 580 220+185 300+250 360 80 4500*2250*2200 5000 3″ 85
